CLASS 300 Y-STRAINER
CLASS 300 Y-STRAINER details:
1. Size : 2.5’’-12’’
2.Pressure :CLASS150-300
3. Suitable Mediums:water
4.material:Carbon Steel A216 WCB/A105 ,Stainless steel
5.Standard:API598,EN558-1
6.Type：Y type
TECHNICAL REQUIREMENT : note: 1.DN50~DN300 meshes Φ1.5
● Face to Face dimensions Conform to EN558-1 list 1
● Flange dimensions Conform to ASME B16.1 CLASS 125
● Sheel test pressure:600psi(4.14MPa)
DN350~DN600 meshes Φ3.0
2.It can be manufactured according to customer’s requirement

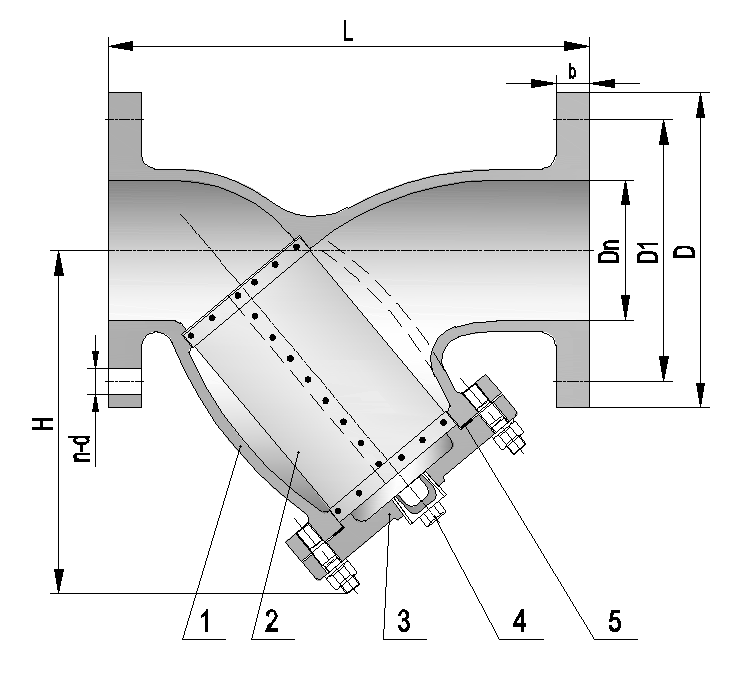

Dimensions data (mm)
NPS
2.5"
3"
4"
5"
6"
8"
10"
12"
Dn
64
76
102
127
152
203
254
305
L
290
310
350
400
480
600
730
850
D
178
190.5
228.6
254
279.4
343
406.4
482.6
D1
139.7
152.4
190.5
215.9
241.3
298.5
362
431.8
b
17.5
19.1
24
24
25.4
28.6
30.2
31.8
n-d
4-19
4-19
8-19
8-22
8-22
8-22
12-25
12-25
H
186.5
203
250
288
325
405
496
574
CLASS 300 Y-STRAINER
