BASKET STRAINER details:

1.Standard:API598,EN12266-1
2.Size : DN50~DN600mm (1/2"-12")
3.Pressure :PN10-25,CLASS150-300
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
Type：Y type ,basket.

TECHNICAL REQUIREMENT: Design and Manufacture: ASME B16.34 Face to face: ASME B16.10 Flanged connection: ANSI B16.5 Test and inspection: API598
NO. Part Name   Material       1 Body   SS316 SS304 WCB LCB 2 Screen   SS316 SS304 3 Bonnet   SS316 SS304 WCB LCB 4 Bolt   SS316 SS304 5 Nut   SS316 SS304 6 Gasket   Graphite+SS304 7 Plug   SS316 SS304

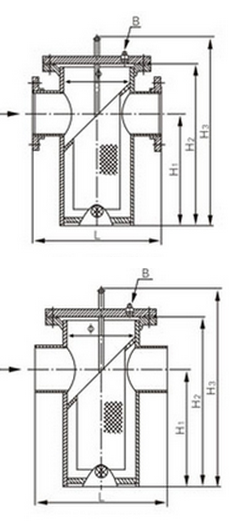

DN φ L H1 H2 H3 B m^2 Multriple kg 25 89 220 160 260 360   0.003619 6.0 15.7/13.8 32 89 220 165 270 370   0.003619 4.5 19.2/16.5 40 114 280 180 300 400 R 1/2" 0.005718 4.5 23.6/19 50 114 280 180 300 400   0.005718 3.0 28.9/23 65 140 330 220 350 460   0.009613 3.0 48.4/39 80 168 340 260 400 510   0.01539 3.0 65.3/53 100 219 420 310 470 580   0.02464 3.0 89.3/76 150 273 500 430 620 730   0.04866 3.0 148/126 200 325 560 530 780 900 R 3/4" 0.07858 2.5 185/158 250 426 660 640 930 1050   0.12005 2.5 230/195 300 478 750 840 1200 1350   0.16537 2.3 307/260
