SIGHT GLASS
SIGHT GLASS details:
Material：cast iron body,plastic plate
Working pressure PN16
Type:waltman ,irrigation
Size:DN50-DN300

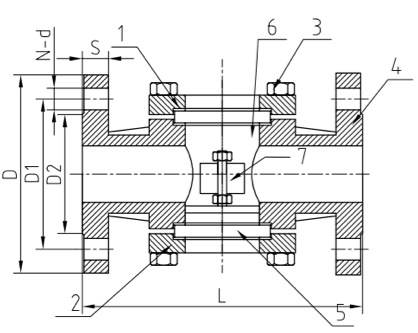

Materials of parts
NO.
Part Name
Material
1
Sealing Gasket
PTFE
2
Bonnet
SS316/WCB
3
Bolt and nut
B838
4
Body
SS316/WCB
5
Glass
Borosilicate
6
Spinner
SS316
7
Pin
SS304
| Dimensions data (mm) | |||||||
| DN | L | D | D1 | D2 | S | N-D | GLASS |
| 1/2" | 130 | 90 | 60.3 | 34.9 | 9.6 | 4-15.7 | φ45X6 |
| 3/4" | 150 | 100 | 69.9 | 42.9 | 11.2 | 4-15.7 | φ45X6 |
| 1" | 160 | 110 | 79.4 | 50.8 | 12.7 | 4-15.7 | φ65X10 |
| 2" | 230 | 150 | 120.7 | 92.1 | 17.5 | 4-19.1 | φ95X15 |
