Multi-jet, vane wheel, dry-dial water meter
Multi-jet, vane wheel, dry-dial water meter details:
LXSG-15～50
Multi-jet, vane wheel, dry-dial water meter
Material：cast iron body,plastic plate
Working pressure PN16
Type:waltman ,irrigation
Size:DN50-DN300
Application: --Measuring the total volume of cold portable water passing through the pipeline. Feature: --Multi-jet, dry-dial, easy for maintenance; --Magnetic drive reliable characteristic, long working life; --Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service; -- Technical data conform to international standard ISO4064 Class B Working condition: Water temperature: 0.1℃～40℃ for cold water meter . 0.1℃～90℃ for hot water meter. Water pressure : ≤1.0Mpa Maximum permissible error: (1) in the lower zone from qmin inclusive up to but excluding qt is ±5%. (2) in the upper zone from qt inclusive up to and including qs is ±2%; Hot water meter ±3% Type Size (mm) Class qs Overload Flow qp Permanent Flow qt Transitional Flow qmin Minimum Flow Minimum Reading Maximum Reading m3/h L/h m3 LXSG-15 15 B 3 1.5 120 30 0.00005 99,999 LXSG-20 20 B 5 2.5 200 50 0.00005 99,999 LXSG-25 25 B 7 3.5 280.0 70 0.00005 99,999 LXSG-32 32 B 12 6.0 480 120 0.00005 99,999 LXSG-40 40 B 20 10 800 200 0.00005 99,999 LXSG-50 50 B 30 15 3000 450 0.00005 99,999 Type Size L Length B Width H Height d Connecting Thread mm LXSG-15 15 165 98 116 G3/4B LXSG-20 20 190 98 117 G1B LXSG-25 25 260 103.5 124 G11/4B LXSG-32 32 260 103.5 124 G11/2B LXSG-40 40 300 125 162 G2B LXSG-50 50 300 125 162 G21/2B 280 160 187.5 Flange connect ISO 7005-2:1988 φD=125 LXSG-15～50 MULTI-JET, VANE WHEEL, DRY-DIAL WATER METER Code Description Material QTY 1 Lid HDPE 1 2 Hinge Pin Brass 1 3 Cap Brass 1 4 Sliding Gasket PP 1 5 Glass Tempered Glass 1 6 O-ring Silicon Rubber 1 7 Register Fixing Ring HIPS 1 8 Register Assembly 1 9 Central Gear Component 1 10 Magnetic Shield Ring Iron 1 11 Magnetic Shield Ring Iron 1 12 Gearing box ABS Plastic 1 13 Tightening Gasket Rubber 1 14 Turbine Component Component 1 15 Measuring Chamber HIPS 1 16 Bottom Strainer LDPE 1 17 Gasket Silicon Rubber 1 18 Body Brass 1 19 Adjusting Screw POM 1 20 Adjusting Gasket Nylon 1 21 Adjusting Plug Brass 1 22 Inlet Strainer PP 1 23 Coupling Gasket Rubber 2 24 Coupling Tail Piece Brass 2 25 Coupling Nut Brass 2MAIN TECHNICAL SPECIFICATIONS

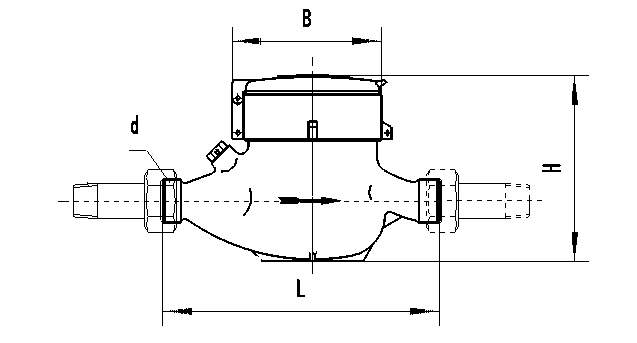

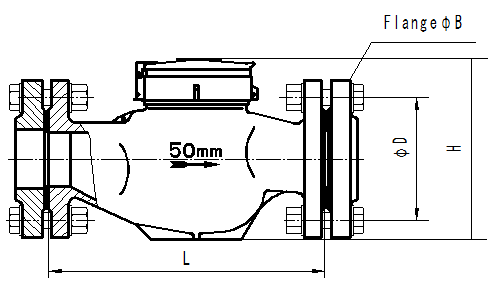

DIMENSIONS
