STAINLESS STEEL BALL VALVE
Back：[Ball Valve] Next：BRONZE BALL VALVE
STAINLESS STEEL BALL VALVE details:
Material：stainless steel ,brass , bronze
Size：1/4’’-4’’
Thread：NPT, BSP, DIN2999, BSPT
Working pressure1000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way
|

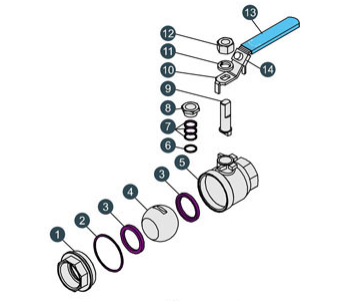

STANDARD: 1. Investment Casting Body and Cap 2. Blow-Out Proof Stem 3. Full Port 2-PC Design Standard Style 4. Refine Stem Packing Available 5. Pressure Balance Hole in Ball Slot (as request) 6. Locking Device Handle Available 7. Design Standard: ASME B16.34 8. Wall Thickness: ASME B16.34 GB12224 9. Several Handle Material Available 10. All Kinds of Screw Available 11. Inspection Standard: API598 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PPL & PEEK High temperature ball seat available upon request. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DIMENSIONS DATA (MM)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
