BRONZE BALL VALVE details:

Material：stainless steel ,brass , bronze
Size：1/4’’-4’’
Thread：NPT, BSP, DIN2999, BSPT
Working pressure1000psi
Temperature range-20-220℃
Medium Water, oil, gas and other medium
Type:2-way 3-way 1-way

STANDARD: Conforms to MSS SP 110   TEST PRESSURE: Body test: 6.0MPa. Seat test: 4.0MPa.   WORKING PRESSURE AND TEMPERATURE: Working Pressure: PN20 Working Temperature: -10℃~170℃   WORKING MEDIUM: Water, Oil and Steam

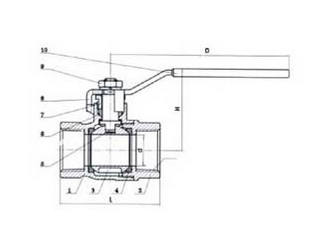

NO. PART MATERIAL 1 Body BS1400 LG2 2 Seat Retainer BS1400 LG2 3 Ball DZR, Chrome Plated 4 Seat PTFE 5 Stem DZR Brass CW602N 6 Packing PTFE 7 Gland Nut DZR 8 Lever Mild Steel 9 Lever Nut Stainless Steel 10 Lever Cover PVC
DIMENSIONS DATA (MM)   Size 1/2"/15 3/4"/20 1"/25 1-1/4"/32 1-1/2"/40 2"/50 d 14 19 24 31 38 49 L 53 61 71 85 92 114 H 44 51 55 65 70 83 W 95 110 110 140 140 160
