CLASS 150-300 CAST STEEL CHECK VALVE

CLASS 150-300 CAST STEEL CHECK VALVE
Back：FORGED STEEL CHECK VALVE  Next：CLASS 600-900 CAST STEEL CHECK VALVE

CLASS 150-300 CAST STEEL CHECK VALVE details:

Applicable Standards:

Design and Manufacture: BS1868

Face to Face and End to End: ASME B16.10

Flanged ends: ASME B16.5

Butt welded ends: ASME B16.25

Test & Inspection: API 598



Main Materials:

WCB,LCB,WC6,WC9,CF8,CF8M,

CF3,CF3M,A995 4A,A995 5A,A995 6A,

Alloy 20,Monel,Inconel



Main Parts Material Sheet



NO. PART ASTM Material
WCB LCB WC6 CF8(M) CF3(M)
1 BODY A216 WCB A352 LCB A217 WC6+STL A351 CF8(M)+STL A351 CF3(M)+STL
2 SEAT A105+13Cr A105+13Cr - - -
3 DISC A216 WCB+13Cr A352 LCB+13Cr A217 WC6+STL A351 CF8(M) A351 CF3(M)
4 HINGE A216 WCB A182 F6 A182 F6 A351 CF8(M) A351 CF3(M)
5 HINGE PIN A276 304 A182 F6 A182 F6 A182 F304(F316) A182 F304(F316)
6 FORK A216 WCB A352 LCB A217 WC6 A351 CF8(M) A351 CF3(M)
7 COVER BOLT A193 B7 A320 L7 A193 B16 A193 B8(M) A193 B8(M)
8 COVER NUT A194 2H A194 7 A194 4 A194 8(M) A194 8(M)
9 GASKET SS304+GRAPHITE PTFE/SS304+GRAPHITE PTFE/SS316+GRAPHITE
10 COVER A216 WCB A352 LCB A217 WC6 A351 CF8(M) A351 CF3(M)

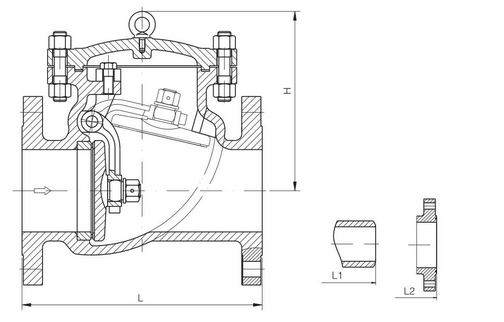

Dimensions and Weights          CLASS150



Size in 1/2 3/4 1 11/2 2 21/2 3 4 6 8 10 12 14 16 18 20 24 26
mm 15 20 25 40 50 65 80 100 150 200 250 300 350 400 450 500 600 650
L/L1
(RF/BW)		 in 4.25 4.62 5 6.5 8 8.5 9.5 11.5 14 19.5 24.5 27.5 31 34 38.5 38.5 51 -
mm 108 117 127 165 203 216 241 292 356 495 622 699 787 864 978 978 1295 -
L2
(RTJ)		 in - - - - 8.5 9 10 12 14.5 20 25 28 31.5 34.5 39 39 21.5 -
mm - - - - 216 229 254 305 368 508 635 711 800 876 991 991 1308 -
H
(Open)		 in 3.12 3.38 3.88 4.38 6 6.5 6.88 8 11.5 13.88 15.38 17 18.75 20.62 22.88 24.62 24.75 -
mm 80 85 100 110 152 165 175 204 293 353 390 432 475 525 582 627 883 -
WT
(Kg)		 BW 2.5 3.5 5 7.5 14 20 25 40 71 118 177 263 353 542 632 855 970 -
RF/RTJ 2 3 3.5 5.5 10 12 17 29 57 96 143 227 295 468 552 755 831 -



Dimensions and Weights          CLASS300



Size in 1/2 3/4 1 11/2 2 21/2 3 4 6 8 10 12 14 16 18 20 24 26
mm 15 20 25 40 50 65 80 100 150 200 250 300 350 400 450 500 600 650
L/L1
(RF/BW)		 in 6 7 8 9 10.5 11.5 12.5 14 17.5 21 24.5 28 33 34 38.5 40 53 -
mm 152 178 203 229 267 292 318 356 445 533 622 711 838 864 978 1016 1346 -
L2
(RTJ)		 in - - - - 11.12 12.12 13.12 14.62 18.12 21.62 25.12 28.62 33.62 34.62 39.12 40.75 53.88 -
mm - - - - 283 308 333 371 460 549 638 727 854 879 994 1035 1368 -
H
(Open)		 in 3.12 3.38 3.88 4.38 6 6.5 6.88 8 11.5 13.88 15.38 17 18.75 20.62 22.88 24.62 34.75 -
mm 80 85 100 110 152 165 175 204 293 353 390 432 475 525 582 627 883 -
WT
(Kg)		 BW 3 4 6 10 16 23 29 46 82 136 204 302 405 625 730 985 1115 -
RF/RTJ 2.5 3.5 5 7 11 13 18 31 61 103 155 245 315 503 593 812 895 -
