API600 CLASS 900 OS&Y CAST STEEL GATE VALVE
API600 CLASS 900 OS&Y CAST STEEL GATE VALVE details:
1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc
Description Applicable Standards: Design and Manufacture: API600 Face to Face and End to End: ASME B16.10 Flanged End: ASME B16.5/ASME B16.47 Butt Welded End: ASME B16.25 Test&Inspection: API598 Design Description: Full bore design Outside Screw and Yoke(OS&Y) Bolted Bonnet(BB) Flexible wedge,fully guided Solid or split wedge gate Renewable seat rings Forged T-head stem Rising stem and non-rising handwheel Flanged or butt welding ends Available with bevel gear operator Available With Gear Box Main Parts Material Sheet Dimensions and Weights CLASS900
NO.
PART
ASTM Material
WCB
LCB
WC6
CF8(M)
CF3(M)
1
BODY
A216 WCB
A352 LCB
A217 WC6
A351 CF8(M)
A351 CF3(M)
2
GATE
A216 WCB+13Cr
A352 LCB+13Cr
A217 WC6+STL
A351 CF8(M)
A351 CF3(M)
3
SEAT
A105+13Cr
A105+13Cr
A217 WC6+STL
A351 CF8(M)+STL6
A351 CF3(M)+STL6
4
STEM
A182 F6
A182 F6
A182 F6
A182 F304/F316
A182 F304L/F316L
5
BONNET BOLT
A193 B7
A320 L7
A193 B16
A193 B8(M)
A193 B8(M)
6
BONNET NUT
A194 2H
A194 7
A194 4
A194 8(M)
A194 8(M)
7
GASKET
SS304+GRAPHITE
PTFE/SS304+GRAPHITE
PTFE/SS316+GRAPHITE
8
BONNET
A216 WCB
A352 LCB
A217 WC6
A351 CF8(M)
A351 CF3(M)
9
BACKSEAT
A182 F6
A182 F6
A182 F6
-
-
10
PACKING
FLEXIBLE GRAPHITE
PTFE/FLEXIBLE GRAPHITE
11
GLAND
A182 F6
A182 F6
A182 F6
A182 F304
A182 F304L/F316L
12
GLAND FLANGE
A216 WCB
A352 LCB
A217 WC6
A351 CF8(M)
A351 CF3(M)
13
GLAND EYEBOLT
A193 B7
A193 B8
A193 B8
14
NUT
A194 2H
A194 8
A194 8
15
PIN
AISI 1025
AISI 1025
16
STEM NUT
BRONZE
BRONZE
17
HANDWHEEL NUT
AISI 1035
AISI 1035
18
SCREW
ASTM A36
ASTM A36
19
HANDWHEEL
A536 60-40-18
A536 60-40-18
20
BEARING GLAND
AISI 1035
AISI 1035
21
GREASE NIPPLE
BRASS
BRASS
22
NAMEPLATE
SS304
SS304
Size
in
2
21/2
3
4
6
8
10
12
14
16
18
20
24
mm
50
65
80
100
150
200
250
300
350
400
450
500
600

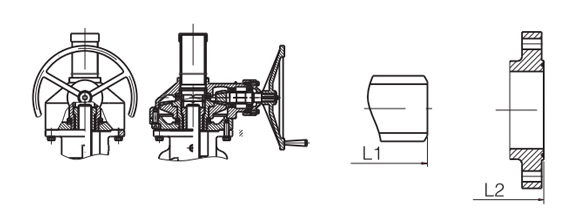

L/L1
(RF/BW)in
14.5
16.5
15
18
24
29
33
38
40.5
44.5
48
52
61
mm
368
419
381
457
610
737
838
965
1029
1130
1219
1321
1549
L2
(RTJ)in
14.62
16.62
15.12
18.12
24.12
29.12
33.12
38.12
40.88
44.88
48.5
52.5
61.75
mm
371
422
384
460
613
740
841
968
1038
1140
1232
1334
1568

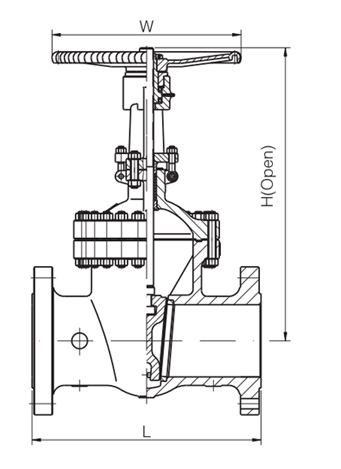

H
(OPEN)in
19.62
21.5
22.5
26.62
35.5
43.5
53
60
74.88
81
87
101
104
mm
498
547
573
678
900
1103
1345
1525
1900
2055
2215
2565
2640
W
in
10
10
12
18
20
24
26
29
32
32
36
38
40
mm
250
250
300
450
500
600
640
720
800
800
950
950
1000
WT
(Kg)RF/RTJ
74
101
131
172
335
640
1100
1600
2250
2850
3060
3835
4900
BW
54
78
105
135
260
515
920
1380
2010
2565
2485
3250
4065
