API600 CLASS 150 OS&Y CAST STEEL GATE VALVE details:

1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc

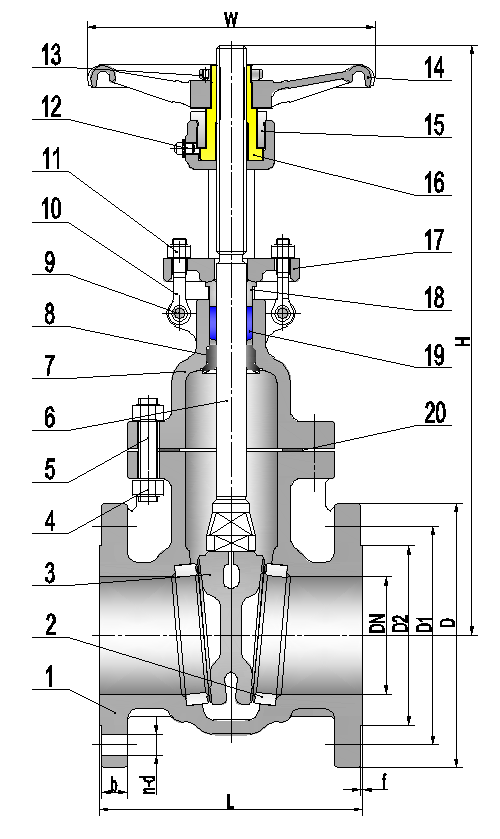

TECHNICAL REQUIREMENT :     ● Design and Manufacture  Conform to API 600      ● Flange dimensions  Conform to ASME B16.5      ● Face to Face  dimensions Conform to  ASME B16.10     ● Testing Conform to API 598     ● Driving mode: hand wheel, bevel gear, electric     Materials of parts No. Part Name Material 1 Body A216-WCB 2 Seat Ring A105+CR13 3 Wedge A216-WCB+CR13 4 Bonnet Stud Nut A194-2H 5 Bonnet Stud A193-B7 6 Stem A182-F6a 7 Bonnet A216-WCB 8 Stem Back Seat A276-420 9 Eyebolt pin Carbon Steel 10 Eyebolt Carbon Steel 11 Eyebolt Nut Carbon Steel 12 Grease Fitting Brass+Steel 13 Handwheel Nut Carbon Steel 14 Handwheel Ductile Iron 15 Yokesleeve Jam nut Carbon Steel 16 Yokesleeve Bronze 17 Gland Flange A216-WCB 18 Gland A276-420 19 Packing Graphite 20 Bonnet Gasket Graphite+304

Dimensions data (mm) NPS 2 2½ 3 4 5 6 8 10 12 14 16 18 20 24 L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508 D 152 178 191 229 254 279 343 406 483 533 597 635 699 813 D1 120.7 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3 D2 92 105 127 157 186 216 270 324 381 413 470 533 584 692 b 14.4 16.4 17.9 22.4 22.4 23.9 26.9 28.9 30.2 33.9 35.4 38.4 41.4 46.4 n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35 f 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 H 345 387 430 513 583 648 790 935 1100 1200 1330 1480 1635 1935 W 200 200 250 250 300 300 350 400 450 500 500 600 600 650
