API 600 CLASS 600 OS&Y CAST STEEL GATE VALVE details:

1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc

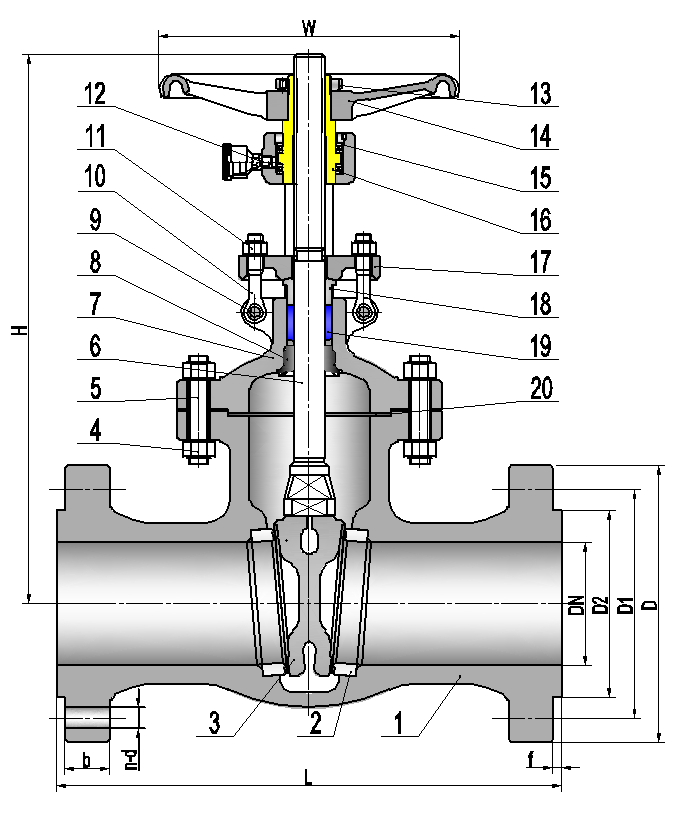

TECHNICAL REQUIREMENT :     ● Design and Manufacture  Conform to API 600      ● Flange dimensions  Conform to ASME B16.5      ● Face to Face  dimensions Conform to  ASME B16.10     ● Testing Conform to API 598     ● Driving mode: hand wheel, bevel gear, electric   Materials of parts No. Part Name Material 1 Body A216-WCB 2 Seat Ring A105+CR13 3 Wedge A216-WCB+CR13 4 Bonnet Stud Nut A194-2H 5 Bonnet Stud A193-B7 6 Stem A182-F6a 7 Bonnet A216-WCB 8 Stem Back Seat A276-420 9 Eyebolt pin Carbon Steel 10 Eyebolt Carbon Steel 11 Eyebolt Nut Carbon Steel 12 Grease Fitting Brass+Steel 13 Handwheel Nut Carbon Steel 14 Handwheel Ductile Iron 15 Yokesleeve Jam nut Carbon Steel 16 Yokesleeve Bronze 17 Gland Flange A216-WCB 18 Gland A276-420 19 Packing Graphite 20 Bonnet Gasket Graphite+304

Dimensions data (mm) NPS 2 2½ 3 4 6 8 10 12 14 16 L 292 330 356 432 559 660 787 838 889 991 D 165 191 210 273 356 419 508 559 603 686 D1 127 149.4 168.1 215.9 292.1 349.3 431.8 489 527.1 603.3 D2 92 105 127 157 216 270 324 381 413 470 b 26 29 32 39 48 56 64 67 70 77 n-d 8-19 8-22 8-22 8-25 12-28 12-32 16-35 20-35 20-38 20-41 f 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 H 355 408 450 560 720 880 1004 1410 1253 1373 W 200 250 250 300 450 500 600 600 650 650
