DIN F7 GATE VALVE
DIN F7 GATE VALVE details:
Main Components Materials:
|
Body/ Bonnet |
Stem |
Bolt |
Nut |
Packing |
Gasket |
|
WCB |
13Cr |
B7 |
2H |
Flexible Graphite |
Flexible Graphite+304 |
|
CF8 |
F304 |
B8 |
8 |
Flexible Graphite |
Flexible Graphite+304 |
|
CF8M |
F316 |
B8 |
8 |
Flexible Graphite |
Flexible Graphite+304 |
Technical Specification:
Design standard: DIN EN 12288-2003
Face to face: DIN EN1092-1:2002
Flange ends: DIN EN558-1:1995
Test & Inspection: DIN EN12266:2003
Products Performance Specification:
|
Nominal Pressure |
Shell Test |
Sealing Test (Mpa) |
Suitable Temp (℃) |
Suitable Medium |
|
4.0 |
6.0 |
4.4 |
GS: -29~450℃ SS:-59~540℃ |
water steam Oil |

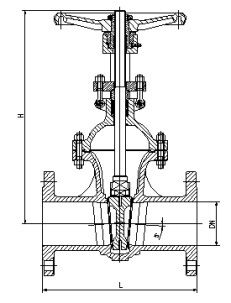

Dimensions:
|
Size |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
||
|
L |
PN40 |
240 |
250 |
290 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
|
|
H |
PN40 |
325 |
335 |
370 |
415 |
485 |
515 |
600 |
730 |
890 |
1050 |
|
|
W |
PN40 |
200 |
250 |
250 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
