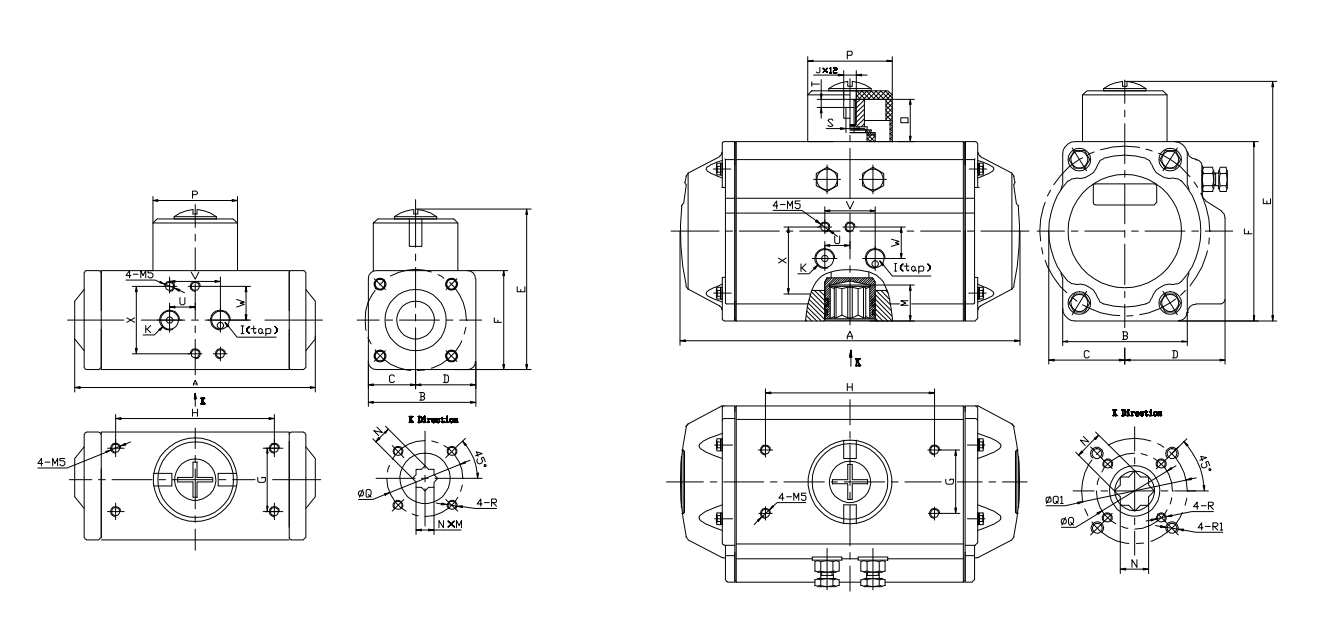

PNEUMATIC ACTUATOR details:



Model FLANGE L(ISO5211) R/R1 A B C D E F G H I J K O P S T U V W X
Q/Q1 M/N(mfn）
AT-32 FC3 M5 116 51 22.5 28.5 70 45 30 80 PF M6 1/8’’ 20 40 4 4 12 24 16 32
φ36 10/9
AT-50 F03/F05 M5/M6 146 47 29 41.5 99 69 30 80 PF M6 1/8’’ 20 40 4 4 12 24 16 32
φ36/φ50 13/11
AT-63 F03/F05 M5/M6 163 59 36 47.5 115 85 30 80 PF M6 1/8’’ 20 40 4 4 12 24 16 32
φ36/φ50 16/14
AT-75 F05/F07 M6/M8 214 68 43 51 132 102 30 80 PF M6 1/8’’ 20 40 4 4 12 24 16 32
φ50/φ70 19/17
AT-88 F05/F07 M6/M8 252 68 49.5 55.5 145 115 30 80 PF M6 1/8’’ 20 40 4 4 12 24 16 32
φ50/φ70 20/17
AT-100 F07/F10 M8/M10 270 95 56 64 157 127 30 80 PF M6 1/4’’ 20 40 4 4 12 24 16 32
φ70/φ102 24/22
AT-115 F07/F10 M8/M10 316 97 64.5 74.5 185 145 30 80 PF M6 1/4’’ 30 62 4 4 12 24 16 32
φ70/φ102 24/22
AT-125 F07/F10 M8/M10 354 97 69 78.5 197 157 30 80 PF M6 1/4’’ 30 62 4 4 12 24 16 32
φ70/φ102 29/27
AT-145 F10/F12 M10/M12 418 115 80 87 218 178 30 80/130 PF M6 1/4’’ 30 62 4 4 12 24 16 32
φ102/φ125 30/27
AT-160 F10/F12 M10/M12 450 118 89 104 240 200 30 80/130 PF M6 1/4’’ 30 80 4 4 12 24 16 32
φ102/φ125 30/27
AT-190 F10/F12 M10/M12 518 139 103 105 272 232 30 80/130 PF M6 1/4’’ 30 80 4 4 12 24 16 32
φ102/φ125 40/36
AT-210 F14 M16 530 130 113 113 297 257 30 130 PF M6 1/4’’ 30 90 4 4 12 24 16 32
φ140 40/36
AT-240 F16 M20 660 129 129 129 331 291 30 130 PF M6 3/8’’ 30 90 4 4 20 40 22.5 45
φ165 50/46
AT-270 F16 M20 730 160 147 147 372 332 30 130 PF M6 1/2’’ 30 90 4 4 20 40 22.5 45
φ165 50/46
AT-300 F16 M20 880 180 161 172 394 354 30 130 PF M6 1/2’’ 30 90 4 4 20 40 22.5 45
φ165 50/46
AT-350 F16/F25 M20/M16 910 270 190 190 440 410 30 130 PF M6 1/2’’ 30 90 4 4 20 40 22.5 45
φ165/φ254 50/46
