CLASS 150 CAST STEEL GLOBE VALVE
CLASS 150 CAST STEEL GLOBE VALVE details:
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to ANSI B16.34
● Flange dimensions Conform to ASME B16.5
● Face to Face dimensions Conform to ASME B16.10
● Testing Conform to API 598
Materials of parts
No.
Part Name
Material
1
Body
A216-WCB+Cr13
2
Disk
A105+Cr13
3
Stem
A182-F6a
4
Bonnet Stud
A193-B7
5
Bonnet Stud Nut
A194-2H
6
Bonnet
A216-WCB
7
Stem Back Seat
A276-420
8
Packing
Graphite
9
Gland
A276-420
10
Gland Flange
A216-WCB
11
Yokesleeve
Aluminum-Bronze
12
Handwheel
Malleable Iron

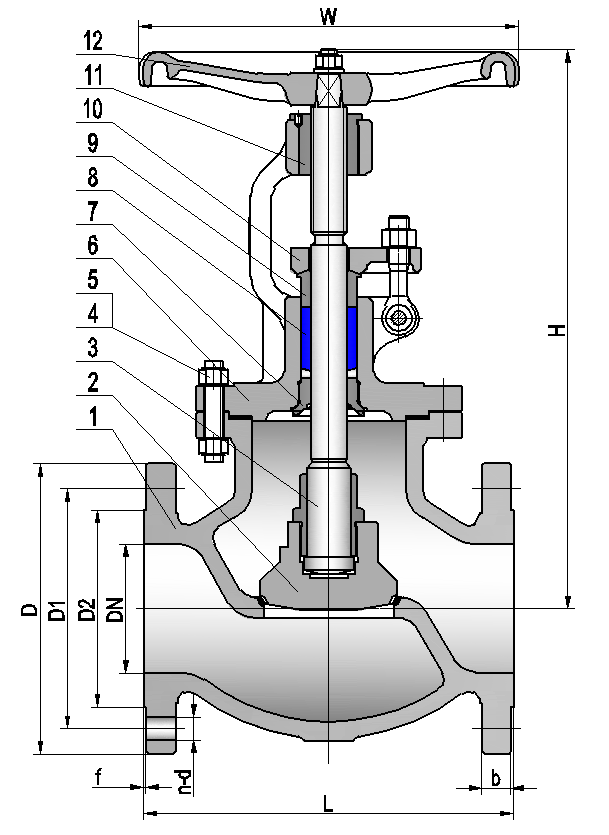

Dimensions data (mm)
DN
2
2½
3
4
5
6
8
10
12
L
203
216
241
292
356
406
495
622
698
D
152
178
191
229
254
279
343
406
483
D1
120.7
139.7
152.4
190.5
215.9
241.3
298.5
362
431.8
D2
92
105
127
157
186
216
270
324
381
b
14.4
16.4
17.9
22.4
22.4
23.9
26.9
28.9
30.2
n-d
4-19
4-19
4-19
8-19
8-22
8-22
8-22
12-25
12-25
f
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
H
300
338
370
442
505
520
585
688
765
W
200
250
250
300
350
350
400
450
500
