DIN 3356 PN16 CAST STEEL GLOBE VALVE
DIN 3356 PN16 CAST STEEL GLOBE VALVE details:
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel

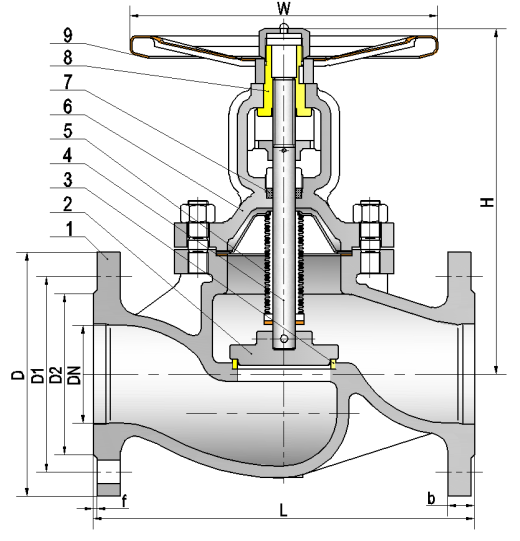

TECHNICAL REQUIREMENT : Dimensions data (mm)
● Design and Manufacture Conform to DIN EN 13709 、DIN 3356
● Flange dimensions Conform to EN1092-1 PN16
● Face to Face dimensions Conform to EN558-1 list 1
● Testing Conform to EN12266-1
Materials of parts
No.
Part Name
Material
1
Body
GS-C25
2
Disk
2Cr13
3
Seat ring
1Cr13/ZCuZn38Mn2Pb2
4
Stem
1Cr13
5
Bellow
304/316
6
Bonnet
GS-C25
7
Packing
Graphite
8
Stem nut
QAl9-4
9
Handwheel
Steel
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
D
95
105
115
140
150
165
185
200
220
250
285
340
405
460
D1
65
75
85
100
110
125
145
160
180
210
240
295
355
410
D2
45
58
68
78
88
102
122
138
158
188
212
268
320
378
b
16
18
18
18
18
18
18
20
20
22
22
24
26
28
n-d
4-14
4-14
4-14
4-18
4-18
4-18
8-18
8-18
8-18
8-18
8-22
12-22
12-26
12-26
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
H
221
221
232
236
245
254
267
283
348
402
456
605
650
720
W
140
140
160
160
180
200
220
250
300
350
400
450
500
600
