DIN 3356 PN25 CAST STEEL GLOBE VALVE

DIN 3356 PN25 CAST STEEL GLOBE VALVE
Back：DIN 3356 PN16 CAST STEEL GLOBE VALVE  Next：DIN 3356 PN40 CAST STEEL GLOBE VALVE

DIN 3356 PN25 CAST STEEL GLOBE VALVE details:

TECHNICAL REQUIREMENT :
    ● Design and Manufacture  Conform to DIN EN 13709 、DIN 3356
    ● Flange dimensions  Conform to EN1092-1 PN25
    ● Face to Face  dimensions Conform to EN558-1 list 1
    ● Testing Conform to  EN12266-1

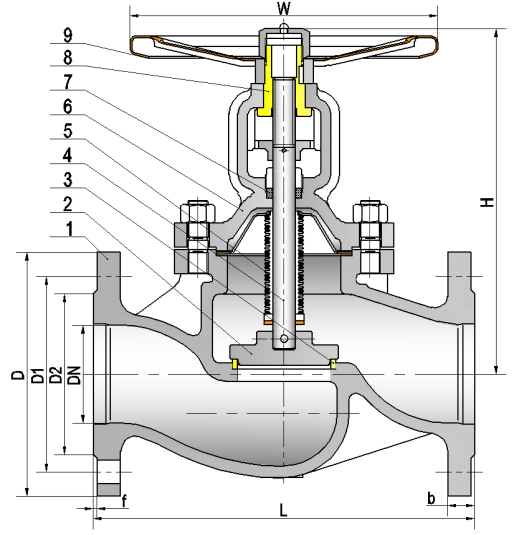

Materials of parts
No. Part Name Material
1 Body GS-C25
2 Disk 2Cr13
3 Seat ring 1Cr13
4 Stem 1Cr13
5 Bellow 304/316
6 Bonnet GS-C25
7 Packing Graphite
8 Stem nut QAl9-4
9 Handwheel Steel








Dimensions data (mm)
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
D 95 105 115 140 150 165 185 200 235 270 300 360 425 485
D1 65 75 85 100 110 125 145 160 190 220 250 310 370 430
D2 45 58 68 78 88 102 122 138 162 188 218 278 335 395
b 16 18 18 18 18 20 22 24 24 26 28 30 32 34
n-d 4-14 4-14 4-14 4-18 4-18 4-18 8-18 8-18 8-22 8-26 8-26 12-26 12-30 16-30
f 2 2 2 2 2 2 2 2 2 2 2 2 2 2
H 221 221 232 236 245 254 267 283 348 402 456 605 650 720
W 140 140 160 160 180 200 220 250 300 350 400 450 500 600
