DIN3356 PN16 CAST STEEL BELLOW GLOBE VALVE
DIN3356 PN16 CAST STEEL BELLOW GLOBE VALVE details:
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to DIN EN 13709、DIN 3356
● Flange dimensions Conform to EN1092-1 PN16
● Face to Face dimensions Conform to EN558-1 list 1
● Testing Conform to EN12266-1
Materials of parts
No.
Part Name
Material
1
Body
WCB
2
Seat ring
CuSn5Zn5Pb5-C/SS304
3
Disk
CuAl10Fe5Ni5-C/2Cr13
4
Stem
CW713R/2Cr13
5
Bonnet
WCB
6
Packing
Graphite
7
Stem nut
16Mn
8
Handwheel
EN-GJS-500-7

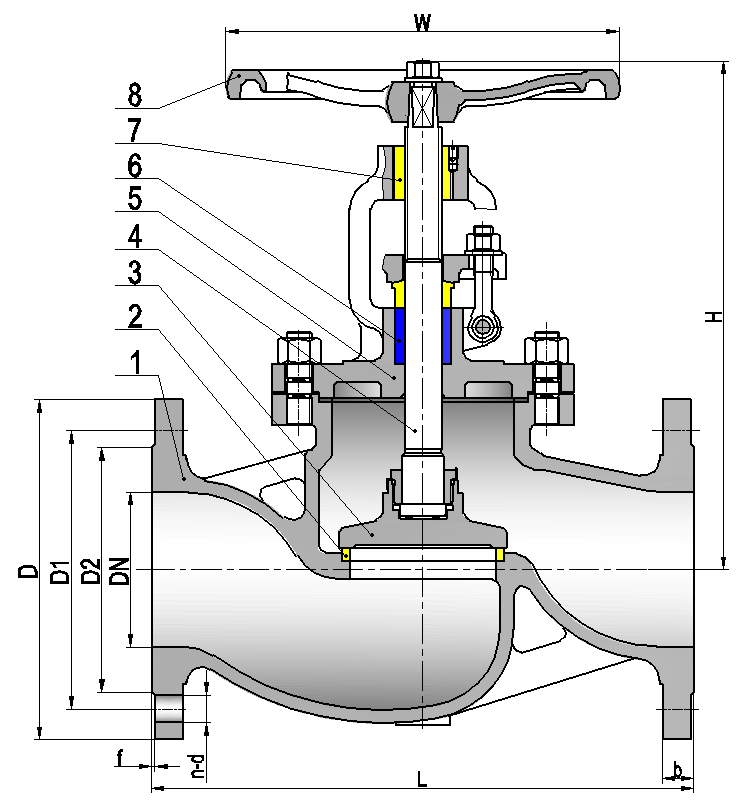

Dimensions data (mm)
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
D
95
105
115
140
150
165
185
200
220
250
285
340
405
460
D1
65
75
85
100
110
125
145
160
180
210
240
295
355
410
D2
45
58
68
78
88
102
122
138
158
188
212
268
320
378
b
16
18
18
18
18
18
18
20
20
22
22
24
26
28
n-d
4-14
4-14
4-14
4-18
4-18
4-18
8-18
8-18
8-18
8-18
8-22
12-22
12-26
12-26
f
2
2
2
2
2
2
2
2
2
2
2
2
2
2
H
189
189
211
219
229
237
265
291
323
384
432
491
630
750
W
120
120
180
180
180
200
200
255
255
306
406
450
508
508
