CLASS 600 CAST STEEL GLOBE VALVE
CLASS 600 CAST STEEL GLOBE VALVE details:
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel

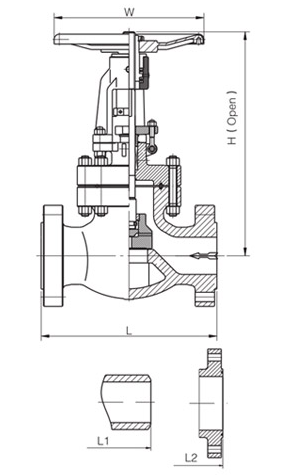

Description Applicable Standards: Design and Manufacture: BS 1873 Face to Face and End to End: ASME B 16.10 Flanged ends: ASME B16.5 Butt welded ends: ASME B16.25 Test & Inspection: API 598 Design Description: Straight pattern body design Outside Screw and Yoke(OS&Y) Bolted Bonnet(BB) Yoke integral with bonnet Rising stem and handwheel Loose disc,optional plug or ball type Renewable seat ring Impact handwheel for NPS 10 & above Horizontal service Flanged or butt welding ends Available with bevel gear operator Main Parts Material Sheet Dimensions and Weights CLASS600
NO.
PART
ASTM Material
WCB
LCB(1)
WC6
CF8(M)
CF3(M)
1
BODY
A216 WCB+13Cr
A352 LCB+13Cr
A217 WC6+STL
A351 CF8(M)+STL
A351 CF3(M)+STL
2
DISC
A216 WCB+13Cr
A352 LCB+13Cr
A182 F11+STL
A351 CF8(M)
A351 CF3(M)
3
STEM
A182 F6
A182 F6
A182 F6
A182 F304(F316)
A182 F304L(F316L)
4
SLEEVE
A105
A105
A182 F11
A182 F304(F316)
A182 F304L/F316L
5
BONNET BOLT
A193 B7
A320 L7
A193 B16
A193 B8(M)
A193 B8(M)
6
BONNET NUT
A194 2H
A194 7
A194 4
A194 8(M)
A194 8(M)
7
GASKET
SS304+GRAPHITE
PTFE/SS304+GRAPHITE
PTFE/SS316+GRAPHITE
8
BONNET
A216 WCB
A352 LCB
A217 WC6
A351 CF8(M)
A351 CF8(M)
9
BACKSEAT
A182 F6
A182 F6
A182 F6
10
PACKING
FLEXIBLE GRAPHITE
PTFE/FLEXIBLE GRAPHITE
11
GLAND
A182 F6
A182 F6
A182 F6
A182 F304(F316)
A182 F304L/F316L
12
GLAND FLANGE
A216 WCB
A352 LCB
A217 WC6
A351 CF8
A351 CF3
13
GLAND EYEBOLT
A193 B7
A193 B8
A193 B8
14
NUT
A194 2H
A194 8
A194 8
15
PIN
AISI 1025
AISI 1025
16
STEM NUT
BRONZE
BRONZE
17
HANDWHEEL NUT
AISI 1035
AISI 1035
Size
in
1/2
3/4
1
11/2
2
21/2
3
4
6
8
10
12
14
16
mm
15
20
25
40
50
65
80
100
150
200
250
300
350
400
L/L1
(RF/BW)in
6.5
7.5
8.5
9.5
11.5
13
14
17
22
26
31
33
-
-
mm
165
190
216
241
292
330
356
432
559
660
787
838
-
-
L2
(RTJ)in
-
-
-
-
11.62
13.12
14.12
17.12
22.12
26.12
31.12
33.13
-
-
mm
-
-
-
-
295
333
359
435
562
663
790
841
-
-
H
(Open)in
7.25
7.62
9
11
17.5
19.75
21
24.5
29.5
36.5
44.88
53.12
-
-
mm
185
195
230
280
445
502
533
622
750
927
1140
1350
-
-
D0
in
4
4
6
8
10
11
13
16
18
20
24
24
-
-
mm
100
100
140
200
240
280
320
400
450
500
600
600
-
-
WT
(Kg)BW
6
8
14
23
35
50
60
110
230
410
770
1140
-
-
RF/RTJ
4.8
6.2
9.5
16.5
27
34
42
84
192
350
680
1030
-
-
