CLASS 900 CAST STEEL GLOBE VALVE
CLASS 900 CAST STEEL GLOBE VALVE details:
1.Standard:API598,DIN3356,BS7350
2.Size : DN15~DN600mm (1/2"-24")
3.Pressure : PN1.0~10MPa(class150-class900)
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
Description Applicable Standards: Design and Manufacture:BS 1873 Face to Face and End to End:ASME B16.10 Fllanged ends:ASME B16.5 Butt welded ends:ASME B16.25 Test & Inspection:API 598 Design Description: Straight pattern body design Outside Screw and Yoke(OS & Y) Bolted Bonnet(BB) Yoke integral with bonnet Rising stem and handwheel Loose disc,optional plug or ball type Renewable seat ring Impact handwheel for NPS 10 & above Horizontal service Flanged or butt welding ends Available with bevel gear operator Dimensions and Weights CLASS 600
NO.
PART
ASTM Material
WCB
LCB(1)
WC6
CF8(M)
CF3(M)
1
BODY
A216 WCB+13Cr
A352LCB+13Cr
A217 WC6+STL
A351 CF8(M)+STL
A351 CF3(M)+STL
2
DISC
A216 WCB+13Cr
A352LCB+13Cr
A182 F11+STL
A351 CF8(M)
A351 CF3(M)
3
STEM
A182 F6
A182 F6
A182 F6
A182 F304(F316)
A182 F304L(F316L)
4
SLEEVE
A105
A105
A182 F11
A182 F304(F316)
A182 F304L(F316L)
5
BONNET BOLT
A193 B7
A320 L7
A193 B16
A193 B8(M)
A193 B8(M)
6
BONNET NUT
a194 2H
a194 7
a194 4
A194 8(M)
A194 8(M)
7
GASKET
SS304+GRAPHITE
PTFE/SS304+GRAPHITE
PTFE/SS316+GRAPHITE
8
BONNET
A216 WCB
A352LCB
A217 WC6
A351 CF8(M)
A351 CF8(M)
9
BACKSEAT
A182 F6
A182 F6
A182 F6
-
-
10
PACKING
FLEXIBLE GRAPHITE
PTFE/FLEXIBLE+GRAPHITE
11
GLAND
A182 F6
A182 F6
A182 F6
A182 F304(F316)
A182 F304L(F316L)
12
GLAND FLANGE
A216 WCB
A352LCB
A217 WC6
A351 CF8
A351 CF3
13
GLAND EYEBOLT
A193 B7
A193 B8
A193 B8
14
NUT
A194 2H
A194 8
A194 8
15
PIN
AISI 1025
AISI 1025
16
STEM NUT
BRONZE
BRONZE
17
HANDWHEEL NUT
AISI 1035
AISI 1035

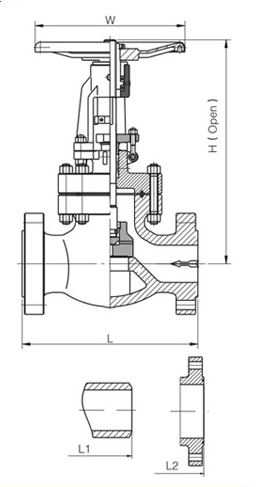

Size
in
1/2
3/4
1
1 1/2
2
2 1/2
3
4
6
8
10
12
14
16
mm
15
20
25
40
50
65
80
100
150
200
250
300
350
400
L/L1
(RF/BW)in
6.50
7.50
8.50
9.50
11.50
13.00
1400
17.00
22.00
26.00
31.00
33.00
-
-
mm
165
190
216
241
292
330
356
432
559
660
787
838
-
-
L2
(RTJ)in
-
-
-
-
11.62
13.12
14.12
17.12
22.12
26.12
31.12
33.13
-
-
mm
-
-
-
-
295
333
359
435
562
663
790
841
-
-
H
(Open)in
7.25
7.62
9.00
11.00
17.50
19.75
21.00
24.50
29.50
36.50
44.88
53.12
-
-
mm
185
195
230
280
445
502
533
622
750
927
1140
1350
-
-
Do
in
4
4
6
8
10
11
13
16
18
20
24
24
-
-
mm
100
100
140
200
240
280
320
400
450
500
600
600
-
-
WT
(Kg)BW
6
8
14
23
35
50
60
110
230
410
770
1140
-
-
RF/RTJ
4.8
6.2
9.5
16.5
27
34
42
84
192
350
680
1030
-
-
